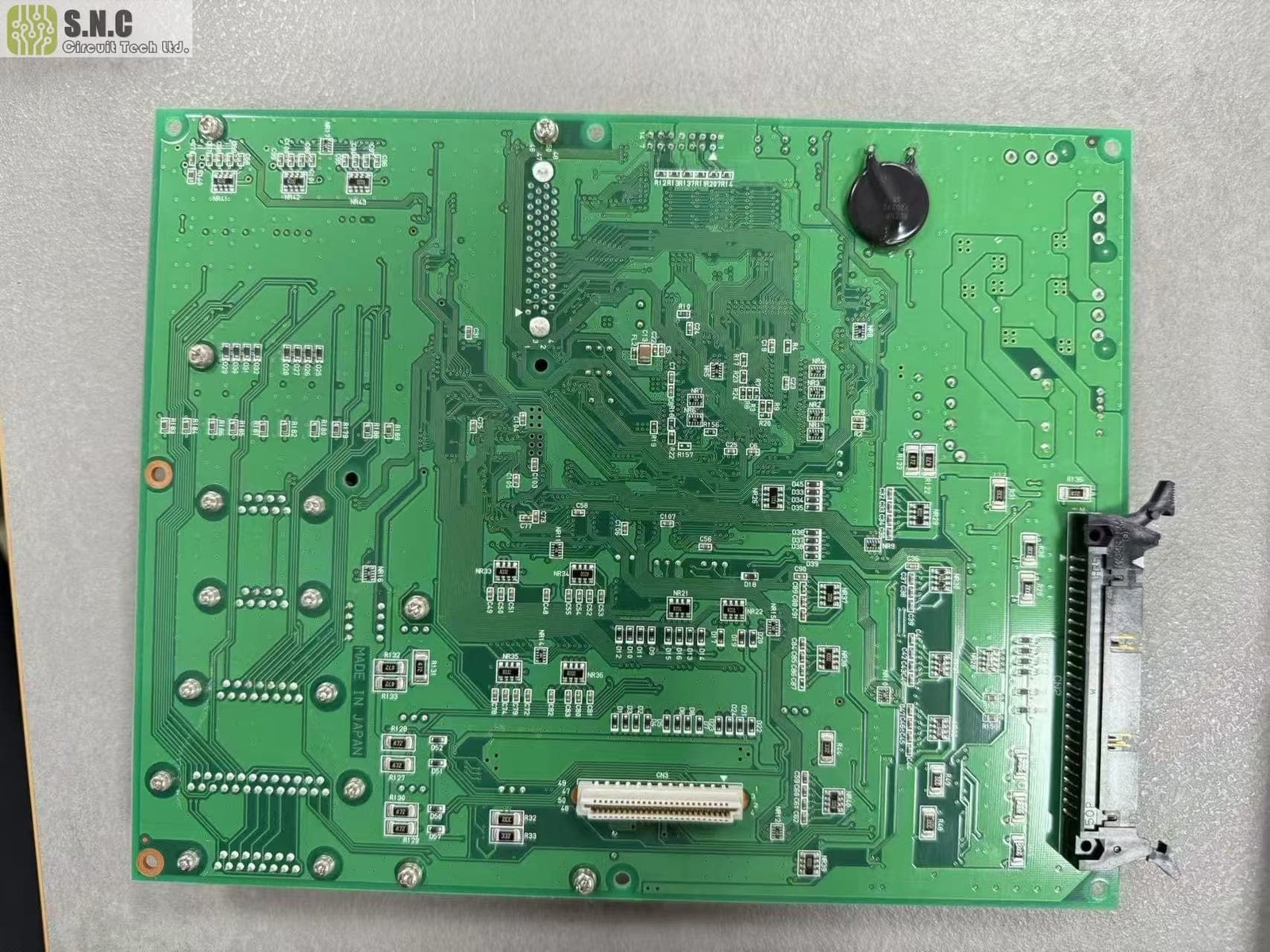

Model NO. PCBA Metal Coating Gold Mode of Production SMT Layers Multilayer Base Material FR-4 Certification RoHS, CCC, ISO Customized Customized Condition New Surface Treatment Gold Finger/Hard Gold Test 100% E-Test Fast Delivery 7 Days Trademark SNC Transport Package ESD Packaging, Shockproof Packaging, Anti-Drop Origin China HS Code 8522909900 | Copper Thickness 0.5-12oz(18-420um) Hole Diameter Min0.05mm Min. Line Spacing 0.10mm(4mil) Board Thickness 0.2-6mm Solder Mask Color Green/Black/White/Red/Blue/Yellow Min. Line Width 0.10mm(4mil) Max. Finished Board Side 1020mm*1000mm One Stop Service PCB Assembly, Component Sourcing, Box Building PCBA Shape Rectangular, Round, Slots, Cutouts, Complex PCBA QA X-ray, Aoi Test, in-Circuit Test (Ict) Surface Finishing HASL/HASL Lead Free, Chemical Tin, Chemical Gold Specification 10cm*10cm Origin China |
Please combine the following files into a single ZIP file and contact us at snccircuit@gmail.com for a quick and non-obligatory quotation:
1. PCB Design File. Please include all Gerbers (at minimum we require copper layer(s), solder paste layers, and silkscreen layers).
2. Pick and Place (Centroid). Information should include component location, rotations, and reference designators.
3. Bill Of Materials (BOM). Information provided must be in machine readable format (Excel or CVS). Your scrubbed BOM should include:
4. For partial assembly, please notate in BOM, “Do Not Install” or “Do Not Load” for components that will not be placed.

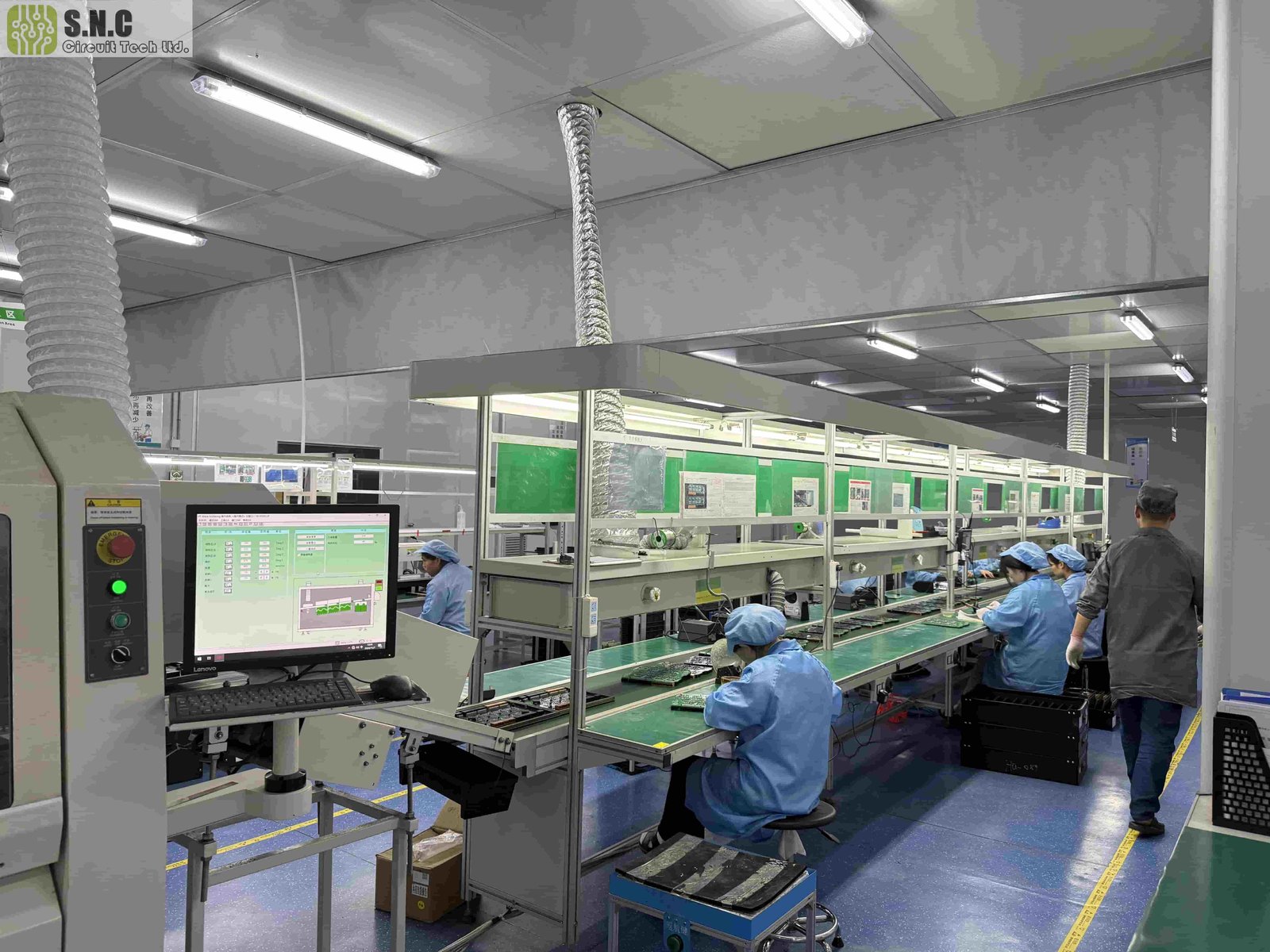

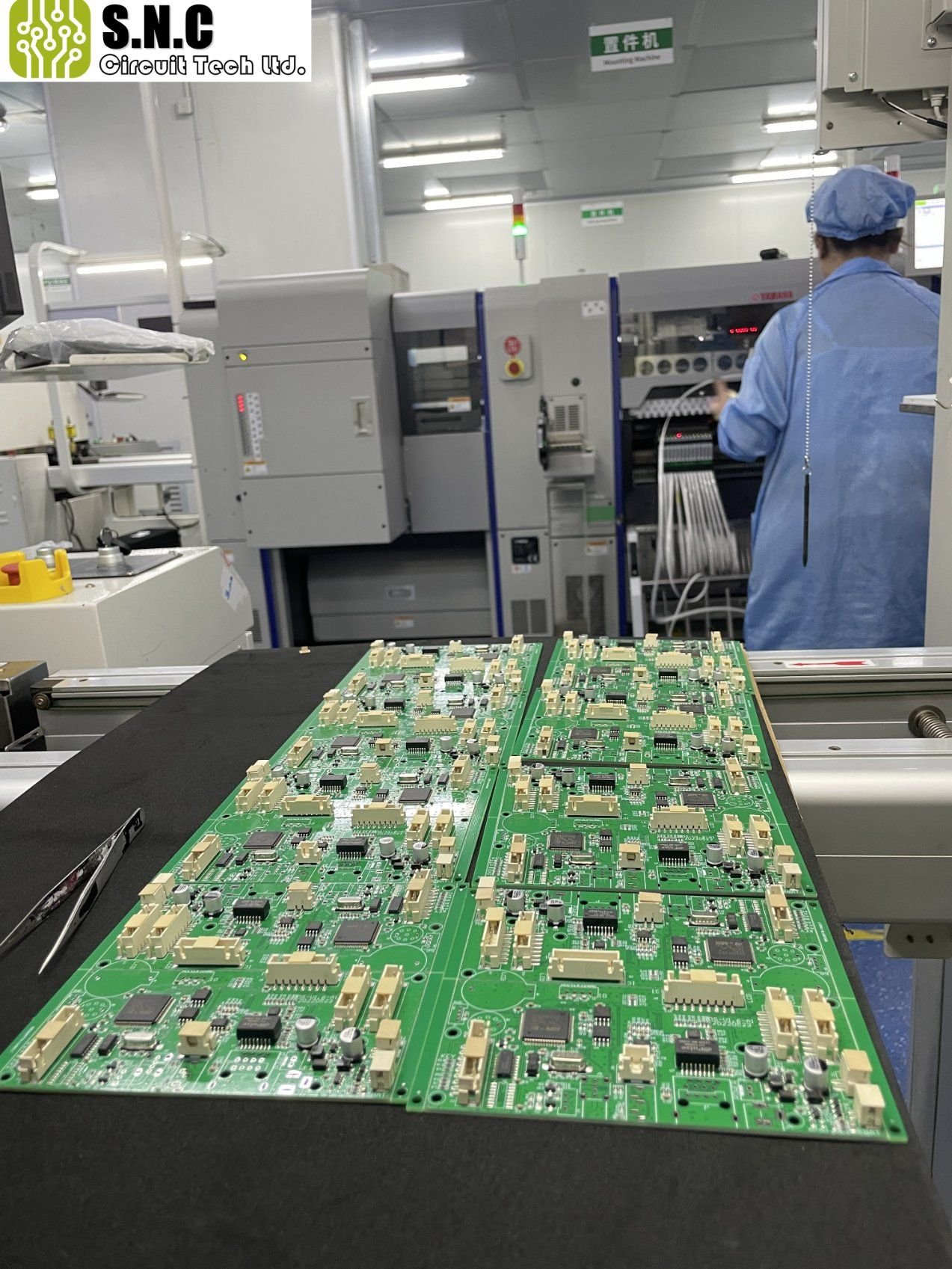

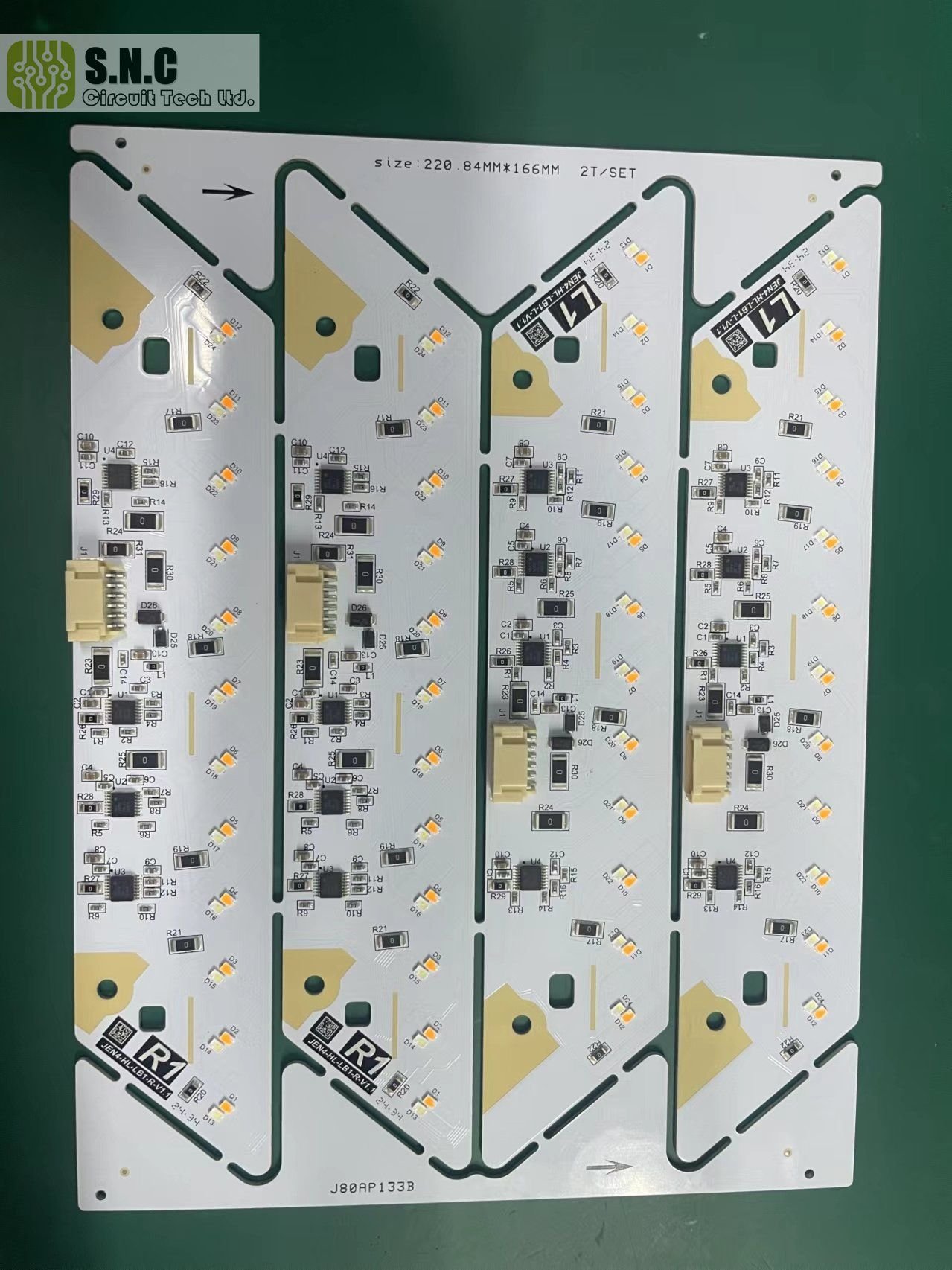

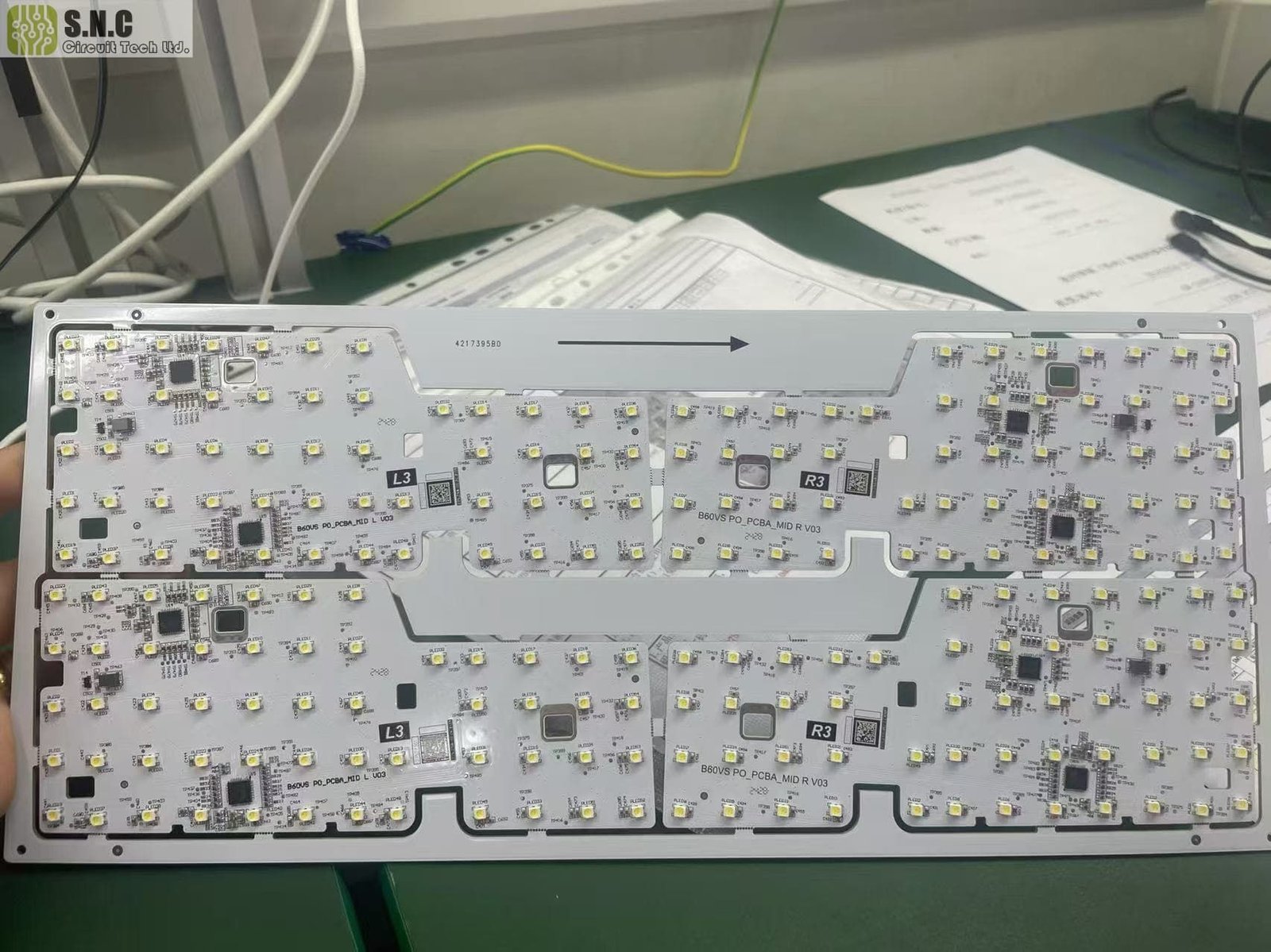

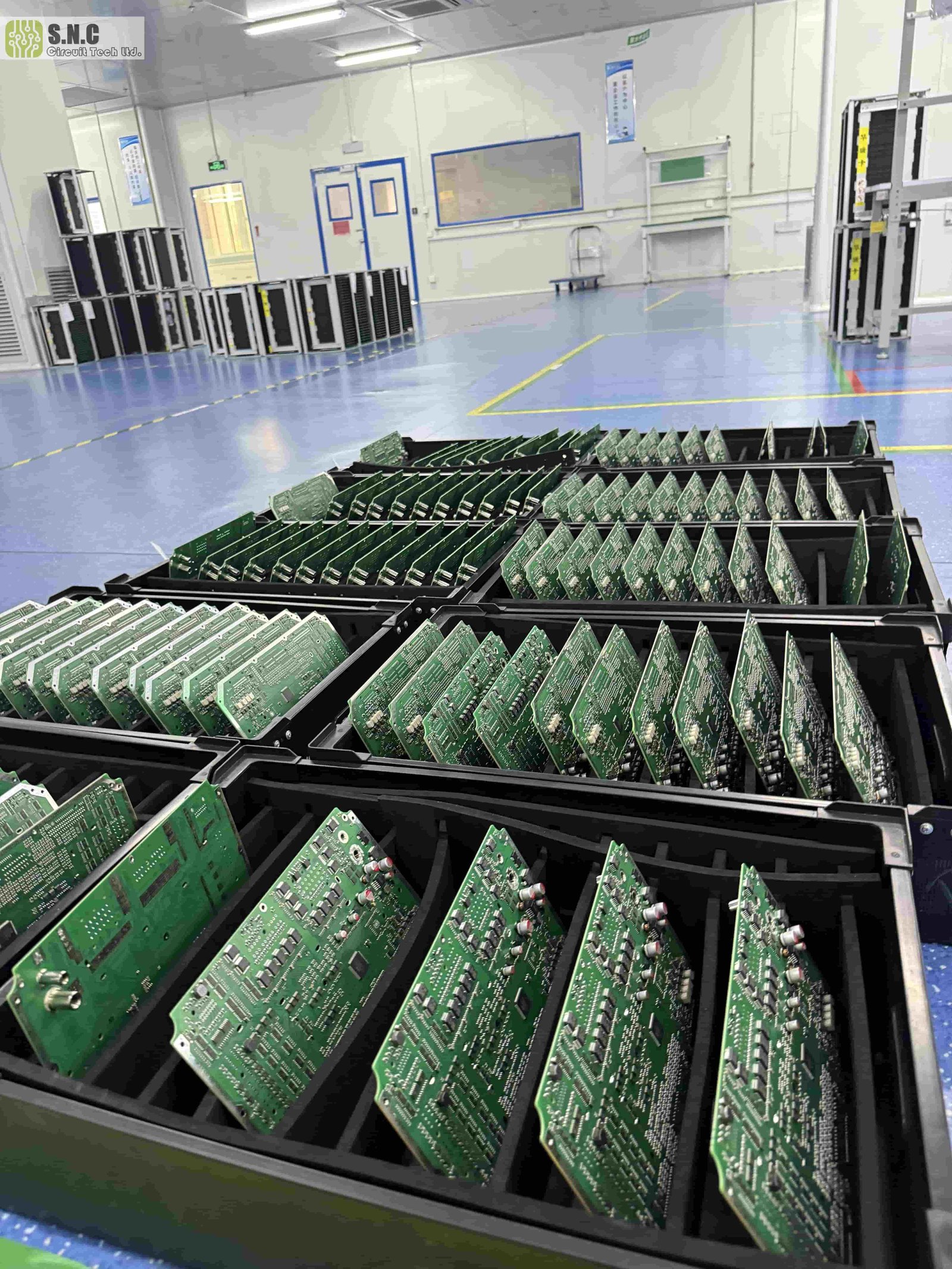

In addition, we can also produce double-sided board,Impedance board & high frequency board,FPC, high frequency board, aluminum substrate circuit board, copper based pcb ,Multilayer circuit board according to customer needs. We also have an automated patch production line that can do pcb assembly, and we can also make pcb copy according to the samples provided by customers.Our products will face the mid-to-high-end market, most of which can be used in medical equipment, GPS, aircraft, satellite controllers, smart cars, transmitters, etc., so we will never use cheap raw materials, nor rely on low prices to attract customers. We believe that reliable quality can win the trust and long-term cooperation of customers, and look forward to your inquiries.
